| Brand Name: | Espure |
| Model Number: | Gpt |
| MOQ: | 1 metric ton |
| Price: | Negotiation |
| Packaging Details: | 500 kg per bulk bag; 25 kg per bag |
| Payment Terms: | T/T |
Product Introduction

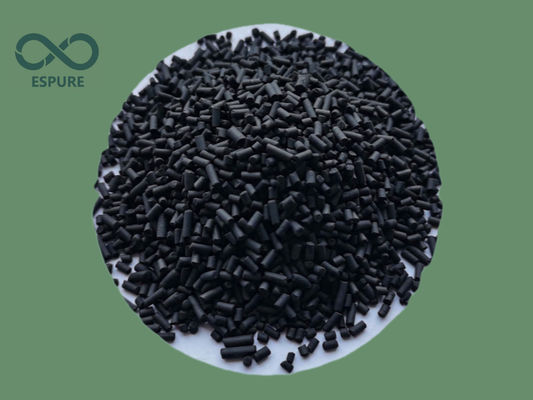

The 700 mg/g pellet activated carbon is expertly formulated for the effective purification of natural gas and biogas, targeting the removal of volatile organic compounds (VOCs) found in these fuel sources. Constructed from high-grade bituminous coal and anthracite, this pellet activated carbon boasts superior adsorption characteristics, making it capable of filtering a diverse array of contaminants. The standardized4 mm pellet size guarantees a minimal pressure drop alongside significant mechanical durability, making this activated carbon an excellent choice for both fixed-bed and fluidized-bed systems.
| Specification | Value |
| Mean Particle Diameter, mm | 4.0 |
| Iodine Number, mg/g | 700 |
| Specific Surface Area, ㎡/g | 700 (min) |
| CTC/CCl4 Activity, % | 35 (min) |
| Moisture, % | 5 (max) |
| Density, g/cm³ | 0.48 |
| Ash, % | 15 (max) |
| Hardness, % | 95 (min) |
Note: Specifications and particle sizes can be customized according to customer requirements.
Features
Exceptional VOC Adsorption: The microporous structure of the pellet activated carbon is highly effective in capturing VOCs, ensuring improved air quality and compliance with environmental regulations.
Consistent Pellet Shape: Uniformity in pellet formation leads to reduced pressure loss and optimized gas flow, which enhances overall operational performance.
Robustness and Durability: Designed with high mechanical strength to withstand wear and tear, this pellet activated carbon guarantees extended service life and lower maintenance demands.
Cost-Effective and Performance-Driven: Balancing affordability with superior functionality, this pellet activated carbon is ideal for extensive industrial applications, contributing to lower ongoing costs.
Applications
Natural Gas Treatment: Ideal for purifying natural gas, this pellet activated carbon effectively eliminates VOCs, ensuring compliance with applicable quality standards.
Biogas Processing: Particularly effective in biogas treatment, the pellet activated carbon captures harmful impurities, enhancing the overall quality of biogas used for energy generation.
Manufacturing Process
The manufacturing of pellet activated carbon follows rigorous quality assurance protocols to ensure uniformity and reliability in each batch. The process begins with the selection of top-quality raw materials, followed by treatments intended to maximize their porosity. A carefully managed activation process, either via steam or chemical means at specific temperatures, facilitates the creation of micro and mesopores. This method significantly boosts surface area and achieves an iodine number of 700 mg/g. Thorough performance evaluations are conducted to measure the efficacy of the pellet activated carbon under actual operational settings. Critical metrics like breakthrough capacity and desorption rates are analyzed to deliver key data for the development of effective gas purification systems.
Packaging Options
Multiple packaging configurations are offered for the pellet activated carbon, including standard bulk bags of 500 kg and 25 kg bags, which enhance convenience during handling and transport. Custom packaging arrangements can be provided to accommodate particular operational necessities, such as smaller bag sizes or specially designed bulk containers. This versatility, coupled with the high effectiveness of the pellet activated carbon, makes it a preferred selection for industries committed to adhering to environmental guidelines while ensuring operational efficiency.
|
|
| Brand Name: | Espure |
| Model Number: | Gpt |
| MOQ: | 1 metric ton |
| Price: | Negotiation |
| Packaging Details: | 500 kg per bulk bag; 25 kg per bag |
| Payment Terms: | T/T |
Product Introduction

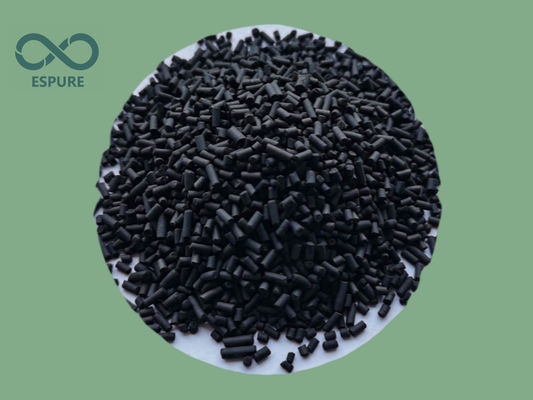

The 700 mg/g pellet activated carbon is expertly formulated for the effective purification of natural gas and biogas, targeting the removal of volatile organic compounds (VOCs) found in these fuel sources. Constructed from high-grade bituminous coal and anthracite, this pellet activated carbon boasts superior adsorption characteristics, making it capable of filtering a diverse array of contaminants. The standardized4 mm pellet size guarantees a minimal pressure drop alongside significant mechanical durability, making this activated carbon an excellent choice for both fixed-bed and fluidized-bed systems.
